What follows this circuit building block will be of much more importance than an exact voltage. That +9V is only a reference point many AC Adapters put out a higher voltage than stated on their label. Simply put, using the schematic above, you either are supplying your circuit with power from the 9V Battery or the AC Adapter plugged into the jack. You can think of the DC Jack as an event-based switch: plug in, battery off plug out, battery on. The fact that the BLACK wire is still connected to the circuit is not important, as that portion of the circuit is now open. At this point, the battery is removed from the circuit. When an AC Adapter’s plug is inserted into the DC Jack, the CONNECT terminal is separated mechanically from the SLEEVE terminal. When no plug is present in the DC Jack, the CONNECT & SLEEVE terminals are internally connected or ‘shorted’. The RED wire is connected to the CONNECT terminal of the DC Jack. The 9V battery’s negative terminal, the BLACK wire connects to the PIN terminal of the DC Jack, which is then a common point for GND (ground/0V).

The picture above is a basic circuit snippet we can use to expand upon depending on what we are trying to accomplish. The Center Negative Power Supply is a very simple circuit.

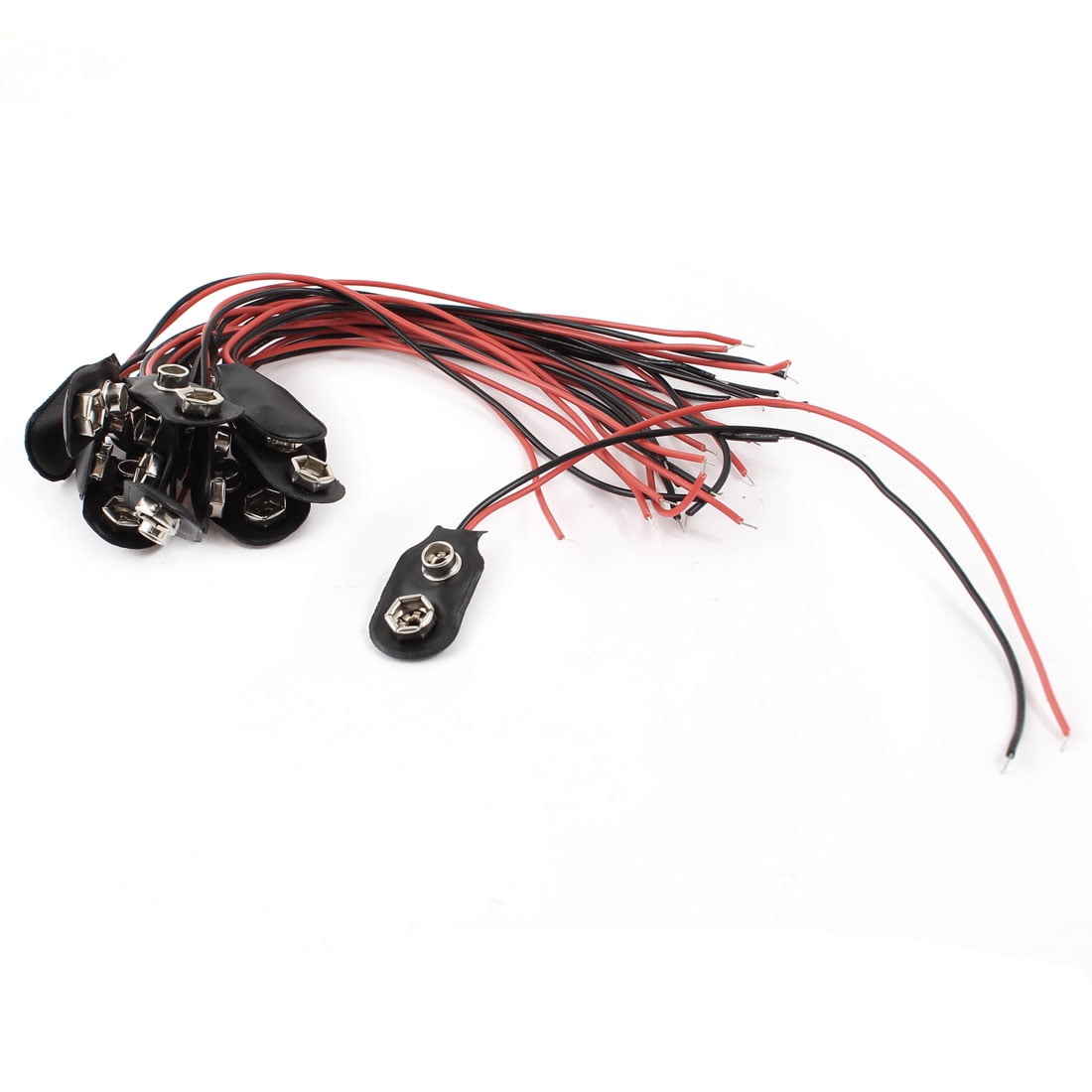

#9v battery clip how to#
So, if you are building your own circuits and want to integrate a professional and versatile power supply, keep reading on this tutorial will teach you how to build a basic Center Negative Power Supply. Be careful to avoid AC-AC Adapters, as they are just about unusable with most DIY electronics projects (you’d have to do a bit of filtering and regulation, no fun). The symbol should be prominently displayed, but you can use a multimeter to verify it. You can easily identify what polarity AC Adapter you have by looking on the label. More on this later… The center negative AC Adapter power symbol In reality, it’s not that limiting, as building your own power supply gives you the ability to flip polarity with the flick of a switch (a DPDT switch will do it). This appears to be either a clever engineering move for profit (“You have to use our special power supply”) or simply just a design issue.


OverviewĪlthough the majority of consumer electronic devices use a Center Positive AC-DC Adapter (commonly referred to as an AC adapter, wall wart, power cord) for their battery charging/ power supply, many audio electronics such as guitar pedals, analog synthesizers, pocket amplifiers and other music generators use the Center Negative power supply configuration. Once the basic circuit has been constructed, I will show you how to modify it: add an ON-OFF switch, add a Power Status LED, and build a 5V voltage regulator circuit for your next breadboard experiment session or DIY design. I will go step-by-step through how to construct a circuit that accepts a Center Negative AC Adapter and/or a 9V battery to supply power to your own circuits. In the DIY audio electronics world, getting electricity to power your circuits is merely a matter of connecting the right wires and voltages to the right spots! In this tutorial, I hope that, by the end, you will have a firm grasp on how to make your own Center Negative power supply.
